Ceramic Heaters

We are glad to inform you that we are supplier of these types of heating element in this segment which can be wrapped around cylindrical surface in easy form.

We would like to express our strength that we are already supplying these types of special heating element for research fields with super quality.

• These heaters are used for heating dyes, molds, barrels in plastic processing industries; they can achieve needed temperature quickly with lesser power consumption.
• In ceramic heaters, spirally wound resistance coil is inserted in ceramic steatites helping to design heater having higher watt densities with long lasting life.
• They are supplied in S.S sheath with thermal insulation to avoid heat losses. Higher wattage allows faster & efficient heating.
• Possible to be made in single or split construction as per the application demand. Various connections & terminations can be provided.
• Based on the application various end terminations can be provided.
• When ordering kindly provide Inner Diameter, Width, Wattage, Voltage, Orientation of Thermocouple hole, End termination.

Features :

• Minimum Heat Loss
• Better heater Life
• Easy installation & Removal
• Customize design
• Uniform Temperature Up to 1100 Degree C

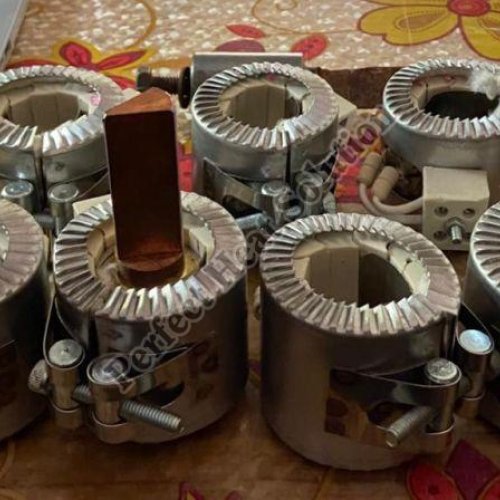

Construction
Perfect Heat Ceramic Band Heater design consist of a helically wound resistance coil made from Kanthal A1/ 80/20 Nichrome wire, evenly stretched and precisely strung through specially designed ceramic insulating bricks/ Knuckles forming a flexible heating mat. The ceramic heating mat along with ceramic fibre insulation is placed on a stainless-steel housing made with serrated edges providing maximum flexibility for easy installation.

Perfect heat Ceramic Band heater is developed to match industrial requirements for high Temperatures up to 1100 °C.

Applications :

• Injection moulding
• Extruders & Blow moulding
• Packaging & Sealing equipment application
